8C31PFIS
| Item Id | 8C31PFIS |

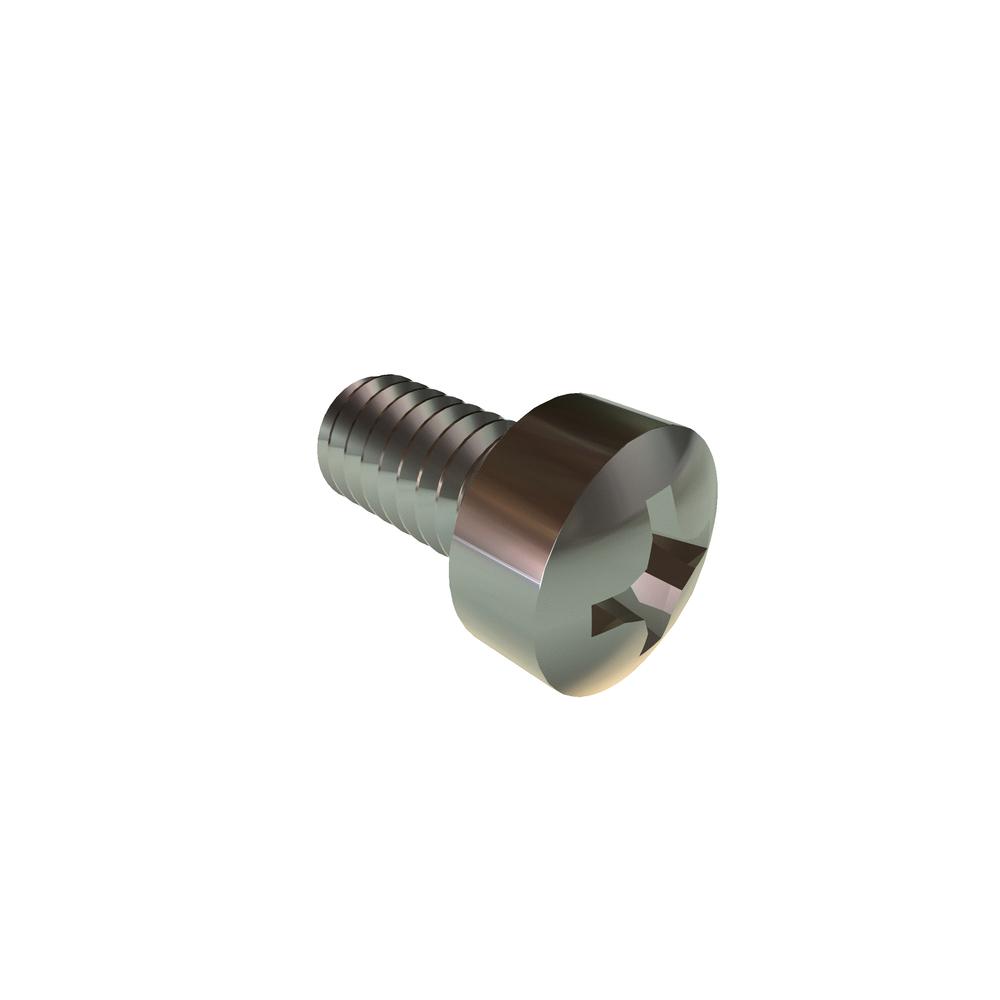

| Description | 8-32 X 5/16 PHIL FILL SST RoHS |
| Extended Description | |
| Packaging | EA |
| Thread Size | Aug-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Fillister |
| Drive Type | Phillips |
| Drive Size | #2 |
| Recess Diameter | 0.175in |
| Recess Depth (Min.) | 0.071in |
| Recess Depth (Max.) | 0.097in |
| Head Side Height (Min.) | 0.102in |
| Head Side Height (Max.) | 0.113in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91737A126 |
| Length | 0.31in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.250in |
| Head Height (Max.) | 0.156in |
| Head Height (Min.) | 0.133in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
